I was looking for the wiring diagram to the xenon headlights - in particular I wanted to check how the + feed to the xenon lights is wired originally. In my version of RAVE, I get this on P. 134 of the 'Electric Circuit Diagrams' which is supposed to be for the xenon lights:

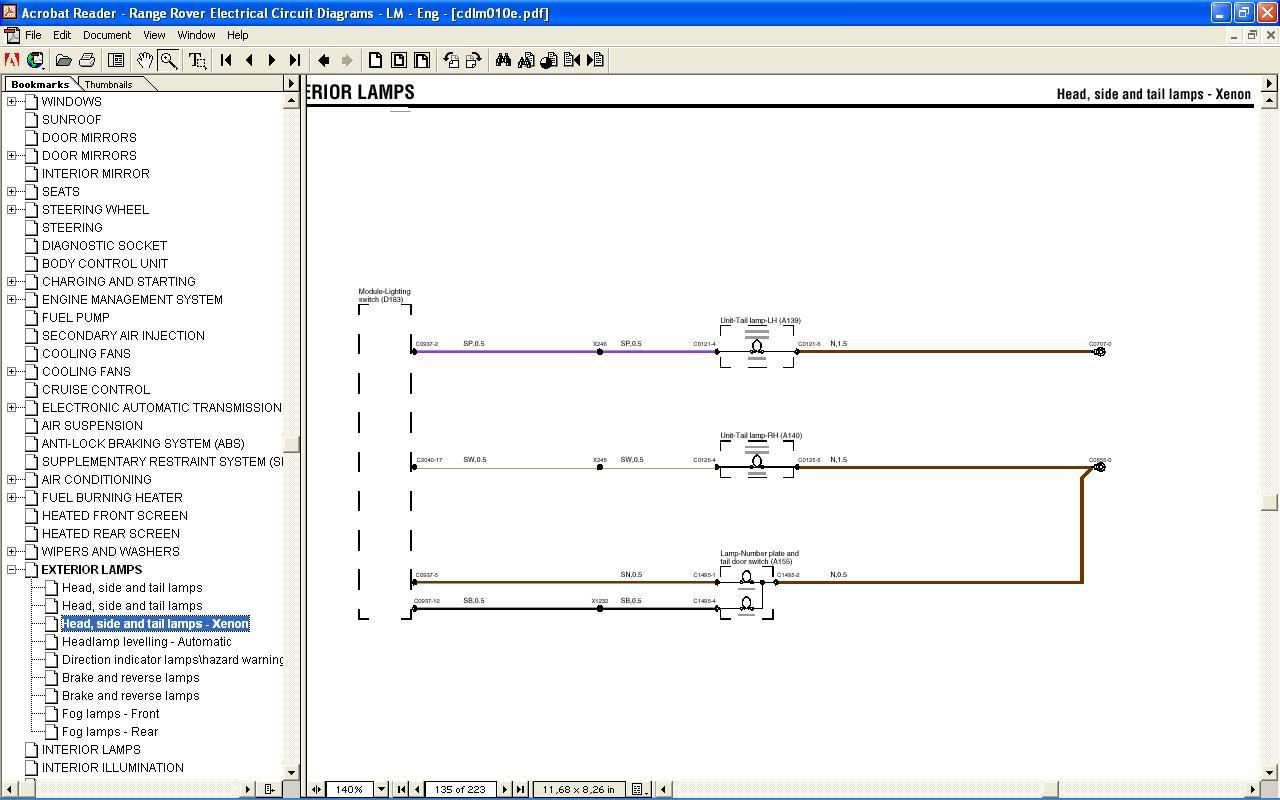

(Photobucket keeps resizing my pic. Don't have time to figure out why. The TOC says 'Head side and Taillamps - Xenon' but the lights shown in the diag are 'Unit Tail Lamp LH', 'Unit Tail lamp RH', and 'Light Number Plate' - no Xenon headlights on the pages post or prior)
Anybody have anything different? Or does anyone have access to GTA?
Found what I needed. There are 2 versions of the Elec. Diag Manual on my version of RAVE - English and English Export. As I figured for the xenon lights it wouldn't make a difference, I just hit whatever and didn't even take notice. Going back to see what's on page 123 of my manual, I noticed the 2 versions. The English version is screwy and shows the taillights/license plate light where the xenon's are supposed to be. The English Export version has the xenon's on page 132 (are you sure that's not what you meant? ) in all their wiring glory.
Hello all,
Planning on doing the tensioner job on my 2010 range rover HSE, 197.5K miles. Does anyone have a crankshaft pulley tool I can rent or buy used?
Hard to justify $250-300 for a tool I'll likely use once. I'm in the midwest
Thanks
Just replaced the EAS compressor with a new WABCO unit from Atlantic British, and Truck will not go into access mode.
1) Go's into extended mode.
2) Go's into Highway mode after staying at HWY speed for a few minutes.
3) Will not go into Access Mode. When I press the button, I only hear it...
I recently installed a rebuilt torque converter in a friend's 2004 RR HSE with BMW transmission. Im a full time mechanic but I've dealt with 2 RR's in my career. Transmission removal, torque converter swap, and transmission replacement went fine. No issues at all. Went to start it and battery...
Hi there, I recently got a Range Rover 4.4 2006. I have a Reduced Engine Performance issue, so first thing I did was checking my lines/vacuum system; I found one tube/line hanging/standing there in free air, located at the drivers side, coming up from the left side of the engine.
I can't figure...
Hello All,
I hope you can help me out with this one.
I have an issue wth the screen in my 05 Vouge.
Basically the screen will start to boot up and then say Temperature Error - Shutting Down. Occasionally you will have a very short (less than a second) period of music, and the reversing camera...
